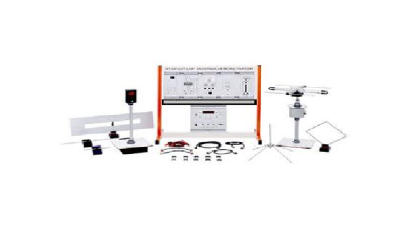

Antenna Trainer Kit

SPESIFIKASI :

• Overview : 16 different types of Antenna
• RF source generation : 500MHz, 2GHz and 10GHz Software simulation of radiation Patterns and characteristics of Antenna Antenna Directional Coupler (Manual / Remote)
• Experiments : Practice of assembling and installing various types of Antenna, Practical experiments of vertical/horizontal directional characteristics, Antenna’s efficiency and gain calculation and measurement, and Interference experiments
• RF Generator :
  • Frequency Range : 500MHz, 2GHz, 10GHz,
  • Power Range : 10mW(Approx.),
  • Output Impedance : 50Ω(Nominal),
  • Modulation Frequency : 1kHz.
• Receiver & Control :
  • RF Input Level : -50.0dBm~-10.0dBm,
  • Ant. Directional Control Range : 0Ëš~ 360Ëš,
  • Ant. Rotor Angle Control : 1Ëš/step, 5Ëš/step, 10Ëš/step, Manual / PC Interface(RS-232C).
