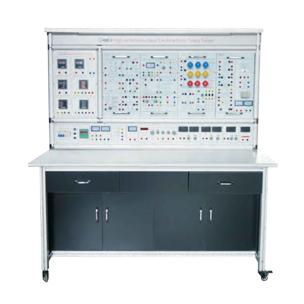

Basic Electric, Electronic, Magnetic Trainer

Untuk mempelajari dasar dasar sistem kerja kelistrikan, elektronika dan elektromagnet.

Experiments for resistance of conductors, series & parallel connection, voltage drop and ohm's law, etc. It allows to carry out
transformer load test, transformer pole test, three-phase transformer connection test and electromotive force test bg electromagnetic induction. Magnetic circuit part is designed to study general physical phenomenon including theoretical background. User can confirm the dynamic hysteresis loop by using an oscilloscope when measuring
magnetic flux. It enables to do variable application experiment as well
as basic semiconductor characteristic experiment. It contains AC/DC Power module which can be used independently.

Basic Electric Circuit Part :
minimum 10 experiments (Serial & Parallel Connection of Resistors, Resistance Measuring bg Voltmeter Method, The Analysis of the Wheat-stone Bridge using Voltmeter, etc.)

Basic Electronics Circuit Part :
minimum 15 experiments (Inverting & Non-inverting Amplifier using OP-Amp, Multivibrator using TR, Wine Bridge Oscillator using OP-Amp, etc.)

Basic Magnetic Circuit Part :
minimum 10 Experiments (Faraday's Law, Saturation curve and voltage ratio of Transformer, Hysteresis and CoreLoss, etc.)
