DETAIL PRODUK

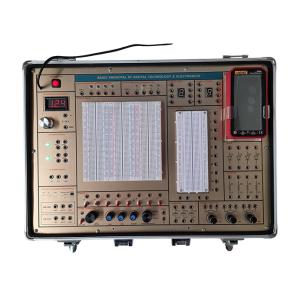

Basic Principal of Digital Technology And Electronics

Kompetensi Keahlian :

Deskripsi :

Minimal Konfigurasi
1 unit power supply unit input 1 x
approx. 100 - 230 V AC 50/60 Hz,
output :
1 unit Universal patch panel
1 set component for electrical
engineering/electronics contains all
of the components for carrying out
basic tests for direct current
technology, 29 resistors 2W, 1 Unit
coil: approx. 100 mH, 7 Unit diodes:
1x AA118, 6x 1N4007,
2 Unit Zener diodes: 1x ZPD 3.3,
1x ZPD 10, 2 Unit LEDs: 1x blue, 1x
red/green, 1 Set bulb: approx. 12 V
62 mA, 1 Set toggle switch, 1 Set
Diac: DB3, 1 Set mounted
transformer: 2 coils with approx.
600 windings, 1 coil with approx.
200 windings, 1 separable core,
retainer for transformer core
6 Unit transistors: 1x BC 140-16,
1x BC 547B, 1x BC 160-16, 1x BC
140-16, 1x 2N 3820, 1x FET 2N
3819, 1x 2N 2647, 1x BS 250
1 Unit thyristor
1 Unit triac
1 Set compact unit of Voltage
supplies and squarewave generator
in one, suitable for all tests on
digital and control technology
1 set components of digital
technology contains all of the
components for carrying out basic
tests on digital technology, in
housings compatible with the 19
mm safe technology plug system.
Consist of :
1 Set inverter (3 inverters, 3
Schmitt) trigger,1 Unit AND with 2
inputs, 1 Unit OR with 2 inputs, 1
Unit NAND with 2 inputs, 1 Unit
NOR with 2 inputs, 1Unit XOR with
2 inputs, 1 Unit AND with 4 inputs,
1 Unit OR with 4 inputs, 1 Unit hex
switch (2-way), analogue source
approx. 0 – 5 V, 10L resistor, 1Set
μF capacitor, 1 Unit LED bar graph,
10-digit
1 Unit counter, 4 bit1 Unit 7-,
segment display, single-digit, can be
switched between hex/DEC/seg, 1
Unit RS flip-flop, 2 Unit JK flip-
flops, 1 Unit shift register, 8 Bit par-
ser, 1 Unit shift register, 8 Bit ser-
par, 1 Unit full adder, 4 bit
1 Unit signal input (4x
latch/pushbutton, 1x pushbutton

Anda menginginkan produk ini? Hubungi Kami Sekarang
