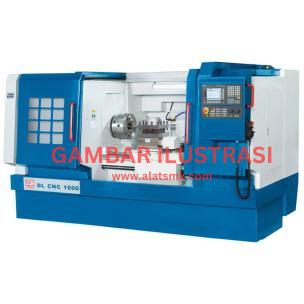

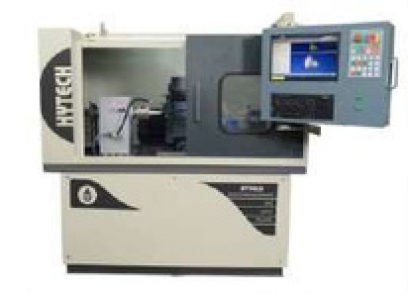

CNC Lathe Machine

SPESIFIKASI :

Bed Type : Flat Bed
Max. Swing over Bed : Ã˜ 360 mm
Distance Between Centers : approx. 1000 mm
Swing over Cross Slide : approx. Ã˜ 210 mm
Spindle Bore : Ã˜ approx. 60 mm
Bed Width : approx. 330 mm
Headstock Spindle Taper: MT6
Spindle Speed : 150-2500 RPM
Steps of Spindle Speed : Variable Speed
Max. Travel of X-Axis : 210 mm,
Max. Travel of Z-Axis : 1000 mm
Rapid Speed of X-Axis : approx. 6000 mm /min,
Rapid Speed of Z-Axis : approx. 8000 mm /min
Tailstock Taper : MT4
Tailstock Quill Stroke : approx. 120 mm,
Tailstock Quill Diameter : approx. Ã˜ 55 mm
Max. Size of Tool Post : 20 X 20 mm,
Nos. of Tool Position : 4 / 6 / 8
Repeat Positioning Accuracy: approx. 0.008 mm,
Setting Unit of X-Axis : 0.001mm
Setting Unit of Z-Axis : 0.001mm
Main Motor : approx. 5500W
Connection Voltage : Three Phase 400V voltage
Standard Accessory : 3-Jaw
Chuck, Automatic 4-station tool changer,
Inverter Spindle Main Motor, Coolant System, Control System or level/up, Tools and Tool-box
