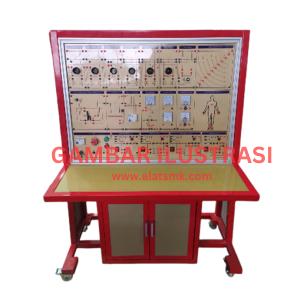

Demonstration Panel For The Study Of The Protection Devices For Safety And Continuity Of Electric Power Supply

Untuk mempelajari sistem penegamanan dari arus listrik dan proses distribusinya dan sambungannya.
Main components installed:
• differential circuit breaker with devices of automatic reset
• magnetothermal differential
circuit breaker with emergency stop circuit in positive safety
• power line for powering auxiliary devices
• magneto thermal differential circuit breaker of double sensitivity
• switch for reducing electric fields (bio switch)
• anti jamming protection devices (overvoltage limiters)
• Uninterruptible Power Supply (UPS) 1PH 500 VA at 230 V
• single-phase isolation transformer of 230 / 230 V 500 VA
• simulator of user earth resistance of 1-200 Ω
• simulator of earth fault adjustable between 5 – 35 mA
• simulator of earth fault adjustable between
100 – 300 mA
Power supply:
230 V / 50-60 Hz Max.
Absorption: 500 VA
