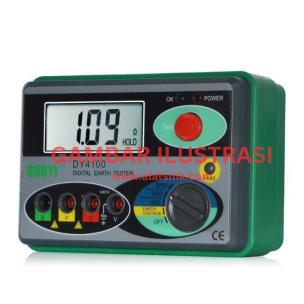

Earth tester
Spesifikasi :
- Measurement Ranges:
• Earth Resistance: 0 to 12Ω, 0 to 120Ω, 0 to 1200Ω
• Earth Voltage: 0 to 30V AC 50/60Hz - Accuracy:
• Earth Resistance: ±3% of full scale
• Earth Voltage: ±3% of full scale - Overload Protection:
• Earth Resistance: 276V AC for 10 seconds across
• Earth Voltage: 276V AC for 1 minute
- Reviews (0)
Be the first to review “Earth tester”
