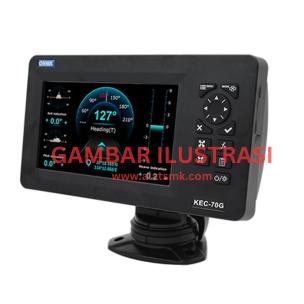

Electric Compass with GPS
Power Supply
Electrical: 10.5 - 32VDC
Power consumption : ~0.5A at 12VDC (no heading sensor connected)
Protection: overcurrent, overvoltage, power transient and accidental reverse
polarity protection
Input / Output
Input : Input port : RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS
Output : 2 x NMEA0183 (RS422)
Output port 1
a) Output sentences: GGA, GSA, HEV , RMC and selectable sentences among of HDT, HDM and HDG
b) Support sentences: RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS,
c) Baudrate: Selectable among 4800, 9600, 19200, 38400
d) Heading output intervals : Selectable among 100ms, 200ms and 1000ms
Output port 2
a) Output sentences: Sentences from the heading sensor and selectable sentences among of HDT, HDM and HDG
b) Support sentences: RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS,
c) Baudrate: Selectable among 4800, 9600, 19200, 38400
d) Heading output intervals : Selectable among 100ms, 200ms and 1000ms
NMEA2000
Supported transmit PGN : 126992, 127250, 129025, 129026, 129029, 129033, 129539
Environment Conditions
Ambient temperature: -5°C to +55°C
Humidity: 93%±3% on 40°C
Waterproofing: IPX6
