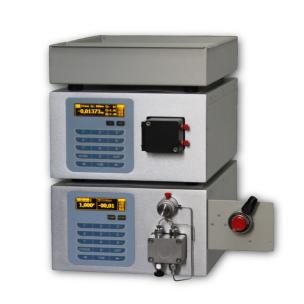

High Performance Liquid Chromatography

SPESIFIKASI :

• HPLC Infusion Method : Micro-volume series double plunger
• Max Infusion Pressure : 0 ~ 9999 Psi
• Flow setting range : 0,001 ~ 9,999 mL/min (adjust the flow by 0,001 mL/min)
• Flow Setting Value Deviation : ≤ 0,5 % Flow
• Stability Deviation : ≤ 0,2%
• RSD
• Gradient Deviation : ±1% ( 0 ~ 100% water / acetone aquenous solution 2 liquid gra
• Pump Sealability : Pressure approx. 5400 Psi, time approx. 10 min, pressure drop less than 400 Psi Time program function
• Ambient Temperature Range : 4 ~ 40⁰ C UV visible variable wavelength detector
• Wavelength Range : 190 ~ 700 nm
• Wavelength Indication Deviation : ≤ ± 1 nm
• Wavelength Repeatability Deviation : ≤ ± 0.1 nm
• Dynamic Noise : ≤ ±0.75 x 10-5 AU ( methanol, 1ml/min, 254nm, 20℃ ）
• Static Noise : ≤ ±0.5 x 10-5 AU ( Empty pool, response time 1 sec, 20℃）
• Dynamic Baseline Drift : ≤ ±1 x 10-4 AU/h（Methanol, 1mL/min, 254nm, 20℃）
• Static Baseline Drift : ≤ 5 x 10-4 AU/h（Empty pool, response time 1 sec, 20℃）
• Linear Range : ≥ 104
• Detection Concentration : ≤ 1 x 10-9 g/mL (Naphthalene/methanol solution)
• Qualitative repeatability : RSD6 ≤0.1%
• Quantitative repeatability : RSD6 ≤ 0.5%
• Spectral bandwidth : 6nmdient)
• Pressure Pulsation : Less than 15 Psi (flow 1 mL/min, pressure 600 ~ 1600 Psi
• Flow cell volume : 8μL Min.
• Optical distance : 10 mm
• Time Program Function
• Ambient Temperature Range : 4~40⁰ C
