DETAIL PRODUK

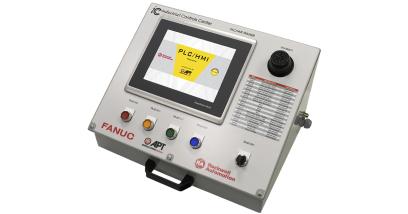

HMI Control Trainer
Kompetensi Keahlian :
Deskripsi :
Untuk mempelajari sistem kontrol HMI yang dapat diaplikasikan melalui PLC.
Power Supply
Power: AC, 50Hz/60Hz
Main Power (Built-in Current Protection Device): 1 Unit
DC Output Power (DC 24V): 1 unit
Output terminals: 4 pcs
Sensor Input & Motor Device
DC Motor(DC 24V) : 1 Unit
Coupling: Circular Type
Photo Sensor: 1pc
Proximity Sensor: 1pc
Operating Power for Sensor: DC 12V-24V
Digital I/O Terminals Input: 12 Points
Output: 8 Points
Com Port Select Block RS-232 Connector for PC Port Select Switch, Graphic Panel (HMI) Indication Element: Color(TFT Color LCD)
BMP, JPG, GIF, WMF Support Screen
Data Memory: Min.10 Mbyte
Backing-up Data Memory: Min. 512 Kbyte
USB Host X 2 Rated Voltage: DC 24V
Power Supply
Power: AC, 50Hz/60Hz
Main Power (Built-in Current Protection Device): 1 Unit
DC Output Power (DC 24V): 1 unit
Output terminals: 4 pcs
Sensor Input & Motor Device
DC Motor(DC 24V) : 1 Unit
Coupling: Circular Type
Photo Sensor: 1pc
Proximity Sensor: 1pc
Operating Power for Sensor: DC 12V-24V
Digital I/O Terminals Input: 12 Points
Output: 8 Points
Com Port Select Block RS-232 Connector for PC Port Select Switch, Graphic Panel (HMI) Indication Element: Color(TFT Color LCD)
BMP, JPG, GIF, WMF Support Screen
Data Memory: Min.10 Mbyte
Backing-up Data Memory: Min. 512 Kbyte
USB Host X 2 Rated Voltage: DC 24V
Tag:
#DAK Alat SMK 2023
