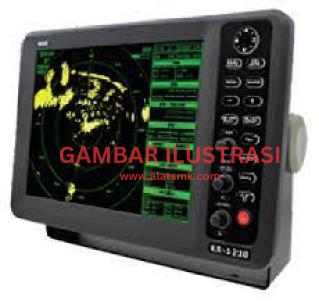

Marine Radar with AIS

Antenna Radiator Minimum diameter/length and rotation speed: Radome 55 cm, 24 RPM;
Wind load: Relative wind 100 knots;
Beamwidth: Horizontal: 4Â°;
Vertical: 25Â°
RF Transceiver Frequency: 9410 Â± 30MHz (Xband);
Pulselength PRR: 0.08 Âµ s/2100 Hz (0.125, 0.25, 0.5, 0.75, 1, 1.5 nm), 0.3 Âµ s/1200 Hz (1.5, 2, 3 nm), 0.8 Âµ s/600 Hz (3, 4, 6, 8, 12, 16, 24, 36 nm);
Peak Output Power: 4KW nominal;
Mixer and Local Oscillator: Microwave Integrated Circuit;
IF: 60MHz;
Bandwidth: 25MHz (0.08/0.3 Âµs), 3MHz (0.8 Âµs)
Display unit: Minimum 9.7â€³ LCD Display;
Display Modes: Head-up, Courseup*, North-up*, True Motion**, * Heading input required, ** Heading and speed inputs required;
Range Scale (nm): Range: 0.125, 0.25, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36; Ring: 0.0625, 0.125, 0.125, 0.25, 0.25, 0.5, 0.5, 1, 1, 2, 2, 3, 4, 6, 12;
Echo Trail: Interval: 15s, 30s, 1min, 3mins, 6mins, 15mins, 30mins or continuous;
Interface: NMEA 0183;
AIS Display: Acquisition: AIS vessels or ATON;
Tracking: Auto;
Display: Vessel Name, MMSI, Call sign, Range/Bearing, L/L, Speed/Course, ROT, CPA/TCPA (AIS data input required);
Target Tracking Function: Acquisition: 20 manual or 10 auto + 10 manual;
Tracking: Auto;
Display: Speed, Course, Range/Bearing, and CPA/TCPA
