DETAIL PRODUK

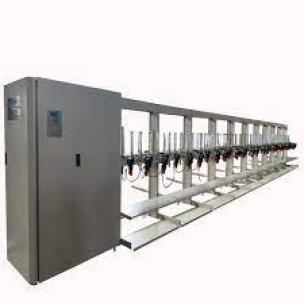

Mesin Twisting
Kompetensi Keahlian :
Teknik Pembuatan Kain
Teknik Pembuatan Serat Flamen
Deskripsi :
* Mode kontrol: PLC & layar Sentuh
* Jumlah spindle: 12
* Bawah diameter roller: 42mm
* Spindle gauge: 75mm
* Atas diameter roller: 57mmm
* Down kecepatan roller: Hingga 10 m/menit
* Twist kesalahan: ±5%
* Kecepatan Spindle: Max 10200 rpm
* Twist Rentang: 200 ~ 2000 T/m
* Spindle panjang: 205mm
* Dimensi: 1800 × 900 × 2000mm (L × W× H)
* Power supply: AC220V 50Hz 850 W
* Berat mesin: 450Kg
* Berat mesin: 450Kg
1. The spindles are driven by individual spindle motors. Drive of delivery andtake−up unit, with traverse motion for
* Individual twisting system.
* Take−up area is at each spindle in the
2. With function as following: Speed controlled by the frequency converter for all the running units. Setting and display technical data. With individual control panel of each spindle.With individual length counter and length and stop motion
*Stopping.With yarn breaks detector
* Jumlah spindle: 12
* Bawah diameter roller: 42mm
* Spindle gauge: 75mm
* Atas diameter roller: 57mmm
* Down kecepatan roller: Hingga 10 m/menit
* Twist kesalahan: ±5%
* Kecepatan Spindle: Max 10200 rpm
* Twist Rentang: 200 ~ 2000 T/m
* Spindle panjang: 205mm
* Dimensi: 1800 × 900 × 2000mm (L × W× H)
* Power supply: AC220V 50Hz 850 W
* Berat mesin: 450Kg
* Berat mesin: 450Kg
1. The spindles are driven by individual spindle motors. Drive of delivery andtake−up unit, with traverse motion for
* Individual twisting system.
* Take−up area is at each spindle in the
2. With function as following: Speed controlled by the frequency converter for all the running units. Setting and display technical data. With individual control panel of each spindle.With individual length counter and length and stop motion
*Stopping.With yarn breaks detector
