DETAIL PRODUK
Micro Hydro Generator
Kompetensi Keahlian :
Teknik Energi Surya, Hidro dan Angin
Deskripsi :
Digunakan untuk pembelajaran mengenai pembangkit listrik tenaga micro hidro.
Technical parameter:
Head: approx. 4-21m
Flow: approx. 10 - 25 liter/ second
Output: approx. 75 - 100W
Piping: approx. 3 inch
Pump: jet pump approx. 220V/ 350W
Turbine:
Type: cross flow
Runner diameter: approx. 75mm
Runner width: approx. 50mm
Transmission: V belt
Generator:
Type: AC generator
Voltage: 220VAC
Power: approx. 3KW, real output approx. 100W
Controller:
ELC, with lamps dummy load volt, Hz and hour
Technical parameter:
Head: approx. 4-21m
Flow: approx. 10 - 25 liter/ second
Output: approx. 75 - 100W
Piping: approx. 3 inch
Pump: jet pump approx. 220V/ 350W
Turbine:
Type: cross flow
Runner diameter: approx. 75mm
Runner width: approx. 50mm
Transmission: V belt
Generator:
Type: AC generator
Voltage: 220VAC
Power: approx. 3KW, real output approx. 100W
Controller:
ELC, with lamps dummy load volt, Hz and hour
Tag:
#DAK Alat SMK 2023
Anda menginginkan produk ini?
Hubungi Kami Sekarang
PRODUK LAINNYA
Pico Hydro Generator
Digunakan untuk pembelajaran mengenai pembangkit listrik ten...
Teknik Energi Surya, Hidro dan Angin
Hybrid Renewable Microgrid System Design Software
Digunakan untuk pembelajar mengenai simulasi, analisis dan p...
Teknik Energi Surya, Hidro dan Angin
Outside Micrometer Set
Gradient Spacing : 0.1 mm
Maximum Measurement :O−25mm
Measur...
Desain Gambar Mesin
,
Teknik Energi Biomassa
,
Teknik Kendaraan Ringan
,
Teknik Pemesinan
Three Point Inside Micrometer Set
Measuring range :
approx. 10−12 mm, approx. 12−16
mm, approx...
Teknik Pemesinan
Metalurgy Microscope
Achromatic Objective 5X, 10X,
40X, Wide Field Plane
−Scope E...
Teknik Pengecoran Logam

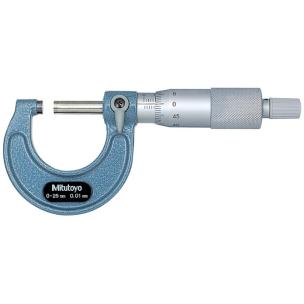

Outside Micrometer
