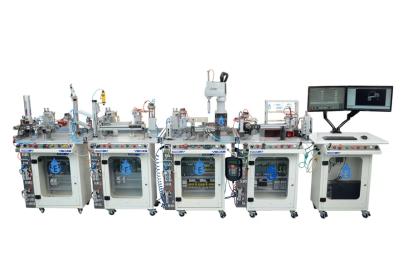

Modular Product System

Digunakan untuk pembelajaran mengenai rangkaian sistim pengaturan dan komunikasi PLC peralatan otomasi industri secara riil dan lengkap meliputi proses: distribusi, pengecekan, proses, pemindahan material, pemilahan produk, dan juga penyimpanan.

1. Input Power: Single phase - 220V ± 10% 50Hz
2. Leakage protection: I Δ n ≤ 30mA, ± ≤ 0.1S
3. AC220V AC power
4. 24 V DC power output
5. Accident emergency stop button, power indicator, power indication
6. Power off misuse power protection
7. Working environment: temperature - 10 °C ~ +4O °C Relative humidity 35% - 65% (25 °C) altitude <4000M
8. Installed capacity: ≤ 5kVA
9. Operation compressed air: 5 ~ 6bar

Part list:
1. Distribution station :
Air service (1 pcs), Mini cylinder (1 pcs), Swing cylinder (1 pcs), Solenoid valve (3 pcs), Vacuum generator (1 pcs), Vacuum chuck (1 pcs), Fiber optic sensor (2 pcs),
Magnetic switch (2 pcs), PLC unit (1 pcs), Touch panel unit (1 pcs), Control panel (1 pcs), Station size (1 pcs)
2. Testing station:
Biaxial cylinder PLC unit Control Panel Platform body (1 pcs), Workpiece detection device (1 pcs), Pusher cylinder device (1 pcs), Solenoid valve (4 pcs), Magnetic switch (6 pcs), Capacitive sensor (1 pcs), Photoelectric sensors (1 pcs), Inductive sensors (1 pcs), Detection sensor, PLC unit (1 pcs), Control panel (1 pcs), Station size (1 pcs)
3. Processing Station
Biaxial cylinder (1 pcs), Chute, Servo controller (1 pcs), Servo motor (1 pcs), Drilling cylinder lifting device(1 pcs), Driving Motor (1 pcs), Pushtng gas cylinder, Clamp cylinder (1 pcs), Detection cylinder (1 pcs), Carousel (1 pcs), Solenoid. valve, Photoelectric sensors (1 pcs), Inductive sensors (1 pcs), Magnetic switch (5 pcs), PLC unit (1 pcs), Control panel (1 pcs), Station size (1 pcs)
4. Handling station
Boom cylinder (1 pcs), Swing cylinders (1 pcs), Arm cylinder (1 pcs), Waste tank (1 pcs) , Vacuum generator (1 pcs), Vacuum chuck (1 pcs), Solenoid valve (4 pcs), Magnetic switch (6 pcs), PLC unit (1 pcs), Control Panel (1 pcs), Platform body (1 pcs)
5. Sorting and storage station
Protruding cylinder (1 pcs), Gas finger (1 pcs), Servo controller (2 pcs), Servo motor (2 pcs), Solenoid valve (2 pcs), Fiber optic sensor and amplifier (2 pcs), Magnetic switch (4 pcs), PLC unit (1 pcs), Control Panel (1 pcs), Platform body (1 pcs), manual book.
