DETAIL PRODUK

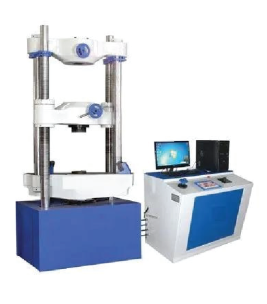

Universal Testing Machine
Konsentrasi Keahlian :
Deskripsi :
Untuk menguji mesin uji material universal, berlaku untuk pengujian tegangan tarik, tegangan tekan, gaya geser, kekuatan pengupasan, dan pemanjangan bahan, komponen, dan produk jadi untuk logam, plastik, karet, tekstil, bahan kimia sintetis, kawat dan kabel, kulit.
Spesifikasi:
Capacity approx. 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000KG
Accuracy level approx. 0.5,
Effective pull space approx.1200mm (contain grips),
Effective test width approx.400mm,
Effective test force range approx.0.02/ 100- 100%,
Speed accuracy Less than ± 0.5%,
Displacement accuracy Lessthan ± 0.5%,
Deformation test accuracy Less than ± 0.5%,
Sensor Imported high accuracysensor
Test force resolution approx.1/ 250,000,
Test Speed approx.0.5 - 1000mm/min,
Motor system
servo motor + servo drive Software controlling system Fully computer control, can do constant stress, constant strain, constant displacement, etc. test Lifting control Computer control or manual button
control Power 220V/ 240V-50HZ/ 60 HZ
Spesifikasi:
Capacity approx. 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000KG
Accuracy level approx. 0.5,
Effective pull space approx.1200mm (contain grips),
Effective test width approx.400mm,
Effective test force range approx.0.02/ 100- 100%,
Speed accuracy Less than ± 0.5%,
Displacement accuracy Lessthan ± 0.5%,
Deformation test accuracy Less than ± 0.5%,
Sensor Imported high accuracysensor
Test force resolution approx.1/ 250,000,
Test Speed approx.0.5 - 1000mm/min,
Motor system
servo motor + servo drive Software controlling system Fully computer control, can do constant stress, constant strain, constant displacement, etc. test Lifting control Computer control or manual button
control Power 220V/ 240V-50HZ/ 60 HZ
