DETAIL PRODUK

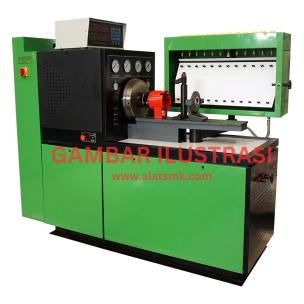

Diesel Conventional Test Bench
Kompetensi Keahlian :
Deskripsi :
Untuk kalibrasi dan analisa kinerja pompa injeksi diesel konvensional baik model inline maupun rotary.
Main motor output pouter (kw) approx. 7.5
Frequency Converter attached
Stroke Counting (Rpm) approx. 50-9999
Standard injectors
Power of fuel pump motor (kw) approx. 0.75
Scope of rotate speed (r/m) approx.0~4000
Number of cylinders 8
Height of principal axis center (mm) approx. 125
Filter oil precision of test bench(μ) 4.5-5.5
big and small volumetric cylinder (ml) approx. 150
Volume of fuel tank (L) approx. 40/45
DC power supply 12/ 24V
Low pressure of fuel oil pressure(Mpa) 0~0.4
High pressure of fuel oil pressure(Mpa) 0~4
Pressure Gauge for VE Pump (Mpa) 0-1.6
Control temperature of fuel (°C) 40±2
Flywheel inertia (kg*m) 0.8~0.9
Scope of rack bar stroke (mm) 0~25
Measuring range of flowmeter (L/m) 10~100
Positive pressure of air supply (Mpa) 0~0.3
Negative pressure of air supply (Mpa) -0.03~0
Manual Boook
Main motor output pouter (kw) approx. 7.5
Frequency Converter attached
Stroke Counting (Rpm) approx. 50-9999
Standard injectors
Power of fuel pump motor (kw) approx. 0.75
Scope of rotate speed (r/m) approx.0~4000
Number of cylinders 8
Height of principal axis center (mm) approx. 125
Filter oil precision of test bench(μ) 4.5-5.5
big and small volumetric cylinder (ml) approx. 150
Volume of fuel tank (L) approx. 40/45
DC power supply 12/ 24V
Low pressure of fuel oil pressure(Mpa) 0~0.4
High pressure of fuel oil pressure(Mpa) 0~4
Pressure Gauge for VE Pump (Mpa) 0-1.6
Control temperature of fuel (°C) 40±2
Flywheel inertia (kg*m) 0.8~0.9
Scope of rack bar stroke (mm) 0~25
Measuring range of flowmeter (L/m) 10~100
Positive pressure of air supply (Mpa) 0~0.3
Negative pressure of air supply (Mpa) -0.03~0
Manual Boook
