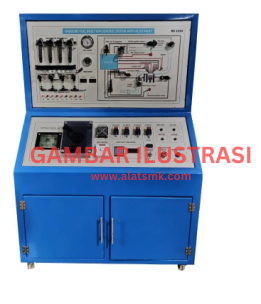

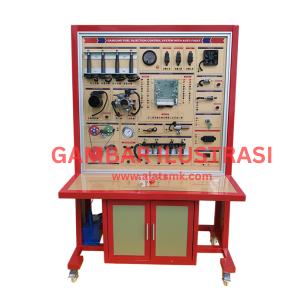

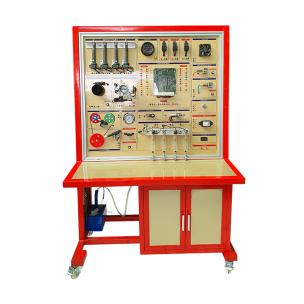

Gasoline Fuel Injection Control System with Auto Fault

Untuk mempelajari kinerja sistem injeksi elektronik pada engine bensin dilengkapi dengan simulasi deteksi kegagalan sistem.

Composition : Fuel Tank, Fuel Pump, pressure regulators, ECU, Injector, fan, crank gear, cam gear, tester for fuel injection

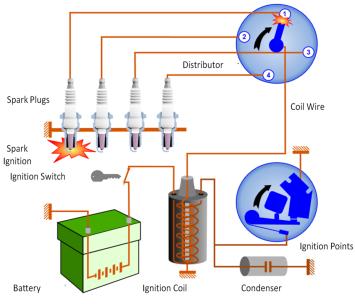

1) Ignition circuit : Coil, ignition plug, air intake

2) Sensor : Temperature sensor, oxygen sensor, air flow sensor, air temperature sensor, an engine temperature sensor, exhaust gas sensor, crank sensor and a cam sensor, Power supply, Cabinet Type storage space with 2 door

Auto Fault Function

Training Contents

Measure the waveforms and check the changes according to RPM speed.

Manual Book

Modul Gasoline Fuel Injection Control System
