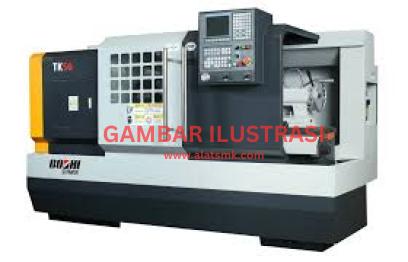

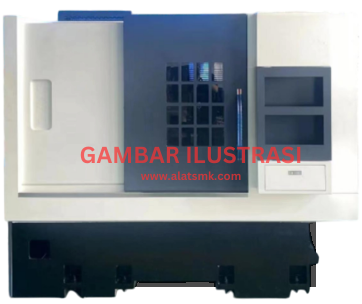

Mesin Bubut CNC (CNC Lathe Machine)
Untuk membubut benda kerja memakai program computer CNC- controlled
- Capacity: swing over (z axis cover) dia: 380 mm, swing over cross slide dia: 120 mm, max turning dia: 100 mm, max bar capacity: 25 mm
- Spindle: spindle nose DIN 55026: A 2-4,
spindle speed: 50-4000 rpm, spindle through bore dia: 38 mm
- Work holding: manual chuck, chuck size: dia 130 mm
- Travel: X axis travel: 200 mm, Z axis travel: 280 mm
- Feed rate: rapid traverse X axis: 20 m/min, rapid traverse Y axis: 25 m/min, feed axis motor: 3 NM servo motor
- Tooling: BTP 50 turret, tool size: 16 x 16 mm, boring bar size: 25 mm
- Center distance: 320 mm, resolution: 0.0005 mm/0.001 mm, repeatability: ±0.01 mm
- Spindle motor power: 4 KW (5.36 HP)
- Lubrication/cooling system: automatic
- User manual
