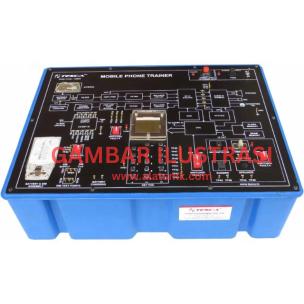

Mobile Phone Trainer

The Mobile Phone Trainer provides basic theory and working fundamentals of a 2G handset based on one of the most popular handsets, the Nokia 3310/3315.
The MPT provides network, power supply, charging and user interface circuits for the detailed block study:
To study and measure frequency band
To study and measure the GMSK signals such as Tx I /Q, Rx I /Q
To study and observe the system CLK
Observation of Audio signal
To study and measure the Power supply
Study of charging phenomena with fault insertion
Study and measure PWM signal of
Ul circuit such as Vibrator, LED, Buzzer
Measurement of LCD with fault insertion
Keypad study with fault insertion
Observe and measure of the SIM
Card CLK with fault insertion
