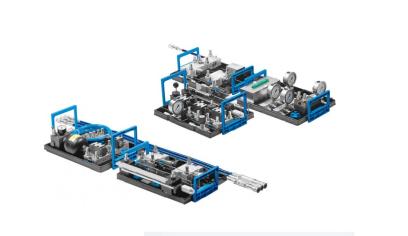

Sistem Pelatihan Hidrolik Dasar (Basic Hydraulic Training System)

- AC 380V,  -Volume kotak minyak:
kira-kira. 35 liter,  -Sistem pompa roda gigi:
pompa motor
menggunakan instalasi
rak terbuka, tingkat
kebisingan rendah,
mudah dalam perawatan;  -Daftar bagian: Meja keja,  -Stasiun hidraulik,  -Silinder hidraulik kerja
ganda,  -katup kontrol arah
hidraulik,  -Katup kontrol tekanan,  -Distribusi konektor
hidraulik -Technical Data :
Hydraulic  -power unit: Work power :
AC 380V Frequency : 50Hz  -Safety rate-limiting range
: 1000- 1500 r/  -Flow : 4.5L/min Oil box
volume : 35Ltr  -Gear pump system: motor
pump using open shelf
installation,  -structure compact, low
noise, easy to
maintenance. -Training table, Hydraulic
station, Double acting
hydraulic cylinder, throttle
valve, One-way throttle
valve,  -Pressure relief valve
(directly actuated), 4/3
Way solenoid valve (M)
,4/3 Way solenoid valve
(O), 4/3 Way solenoid
valve (Y), 4/3 Way  -solenoid valve (H), 4/2
Way solenoid valve, 4/2
Way manual shuttle valves Speed regulator valve ,  -Pilot Relief Valve,
Pressure relief valve (pilot
actuated),  -Pilot pressure reducing
valve, Hydraulic control
one-way valve, One-way
valve, Pressure relay, T
connector,  -Five way connector,
hydraulic distributor,  -Glycerin pressure gauge,
Hose 0.6m, Hose 1m, Hose
1.5m,  -DC power module, Relay
module,  -Button switch module,
power unit for hydraulic
pump,  -Photoelectric sensor,
Capacitive sensor,
Inductive sensor,  -Micro switch module
(left), Micro switch module
(right), Test line, Test line,  -Toolkit, Hydraulic
Simulation Software.  -Manual book,  -Experiments module.
