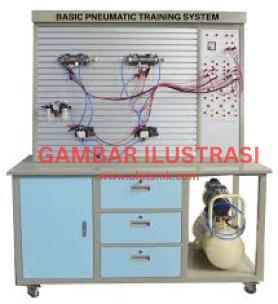

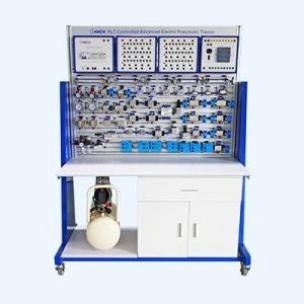

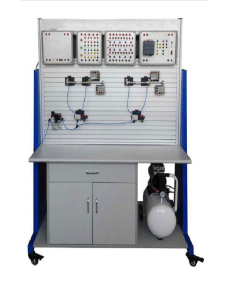

Sistem Pelatihan Pneumatik Dasar (Basic Pneumatic Training System)

-220 VAC – 50 Hz - Tegangan keluaran 24
VDC -1x Silent Compressor :
Tegangan Masukan : AC
230 V, 50 Hz  -Tekanan : 800 kPa (8 bar) - Pmax Isi tangki
kompresor : 24 L  -Tingkat kebisingan : 45
dB •1x manifold •1x
single-acting cylinder,
diameter 20 mm, stroke
50 mm •1x  -double-acting cylinder,
diameter 20 mm,  -stroke 100 mm •2x 3/2 -way valves with
pushbutton, normally
closed -1x 3/2-way valve with
pushbutton, normally
open  -1x 5/2-way valve with
selector switch -1x 3/2- way valve with
selector switch, normally
closed  -2x 3/2-way roller lever valve, normally close  -2x proximity sensors,
pneumatic, with cylinder
attachment  -1x pneumatic timer,
normally closed  -1x pressure sequence
valve -1x 3/2-way valve
pneumatically actuated at
one end  -1x 5/2-way valve
pneumatically actuated at
one end  -3x 5/2-way double-pilot
valve pneumatically
actuated at both end  -1x shuttle valve (OR)  -2x dual pressure valve
(AND)  -1x quick-exhaust valve  -2x one-way flow control
valve -1x start-up valve with
filter control valve  -1x pressure regulator
with gauge -2x pressure gauges  -2x plastic tubing, 10 m, 4
x 0.75 mm, silver  -1x Software simulator
untuk mendesain
rangkaian pneumatik  -Dapat melakukan
minimal 12 eksperimen : -
Mempelajari struktur,
fungsi dan aplikasi dari
silinder kerja tunggal dan
silinder kerja ganda  - Menghitung parameter
dasar  - Mempelajari fungsi dan
aplikasi katup 3/2 dan
katup 5/2,  - Buku Petunjuk, Modul
Percobaan.
