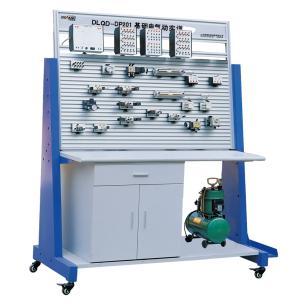

Sistem Pneumatik Dasar (Basic Pneumatic Training System)
Tegangan input: 220 VAC – 50 Hz
- Tegangan keluaran: 24 VDC
- 1 kompresor silent Pressure: 800 kPa (8 bar); Tank capacity: 24 L; Noise level: 45 dB
- 1 manifold for air distribution
- 1 silinder kerja tunggal 20 mm diameter, 50 mm stroke
- 1 silinder kerja ganda 20 mm diameter, 100 mm stroke
- 2 katup 3/2-way normally closed
- 1 katup 3/2-way normally open
- 1 katup 5/2-way dengan selector switch
- 2 katup roller lever normally close
- 2 sensor proximity
- 1 pneumatic timer
- 1 pressure sequence valve
- 1 katup 3/2-way pneumatically actuated
- 1 katup 5/2-way pneumatically actuated
- 3 katup 5/2-way double-pilot
- 1 shuttle valve (OR)
- 2 dual pressure valve (AND)
- 1 quick-exhaust valve
- 2 one-way flow control valve
- 1 start-up valve dengan filter control
- 1 pressure regulator dengan gauge
- 2 pressure gauges
- Plastic tubing 10 m, 4 x 0.75 mm
- Software simulator
- Buku petunjuk dan modul percobaan untuk minimal 12 eksperimen
