Basic Principal of Digital technology & electronics

Konsentrasi Keahlian :

Teknik Audio Video

Teknik Elektronika Industri

Teknik Elektronika Komunikasi

Teknik Mekatronika

Teknik Otomasi Industri

Deskripsi :

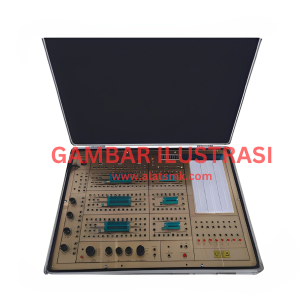

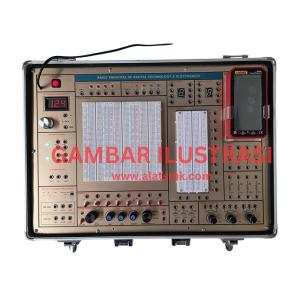

Untuk satu paket peralatan untuk belajar elektrikal dan elektronik dasar hingga kendali digital
dalam satu panel yang dilengkapi function generator.
Minimal Konfigurasi
1 unit power supply unit input 1 x approx. 100 - 230 V AC 50/60 Hz, output :
1 unit Universal patch panel
1 set component for electrical engineering/electronics contains all of the components for carrying out basic tests for direct current technology, 29 resistors 2W, 1 Unit coil: approx. 100 mH, 7 Unit diodes: 1x AA118, 6x 1N4007, 2 Unit Zener diodes: 1x ZPD 3.3, 1x ZPD 10, 2 Unit LEDs: 1x blue, 1x red/green, 1 Set bulb: approx. 12 V 62 mA, 1 Set toggle switch, 1 Set Diac: DB3,
1 Set mounted transformer: 2 coils with approx. 600 windings, 1 coil with approx. 200 windings, 1 separable core, retainer for transformer core
8 Unit transistors: 1x BC 140-16, 1x BC 547B, 1x BC 160-16, 1x BC 140-16, 1x 2N 3820, 1x FET 2N 3819, 1x 2N 2647, 1x BS 250
1 Unit thyristor
1 Unit triac
1 Set compact unit of Voltage supplies and squarewave generator in one, suitable for all tests on digital and control technology
1 set components of digital technology contains all of the components for carrying out basic tests on digital technology, in housings compatible with the 19 mm safe technology plug system.
Consist of :
1 Set inverter (3 inverters, 3 Schmitt) trigger,1 Unit AND with 2 inputs, 1 Unit OR with 2 inputs, 1 Unit NAND with 2 inputs, 1 Unit NOR with 2 inputs, 1 Unit XOR with 2 inputs, 1 Unit AND with 4 inputs, 1 Unit OR with 4 inputs, 1 Unit hex switch (2-way), analogue source approx. 0 - 5 V,1 Unit 10L resistor, 1 Set μF capacitor, 1 Unit LED bar graph, 10-digit
1 Unit counter 4 bit, 1 Unit 7-segment display, single-digit, can be switched between hex/DEC/seg, 1 Unit RS flip-flop, 2 Unit JK flip-flops, 1 Unit shift register, 8 Bit par-ser, 1 Unit shift register, 8 Bit ser-par, 1 Unit full adder, 4 bit
1 Unit signal input (4x latch/pushbutton, 1x pushbutton
- Kabel lab aman 4mm, breadboard
- Manual pengguna dan modul percobaan
