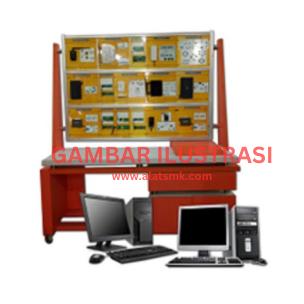

Local Area Network (LAN) Trainer
Digunakan untuk praktik wireless komunikasi data.
Technical parameter:
Input Power : AC 220V, 50/60Hz
Router: One 10/100BaseTX Fast Ethernet port (RJ45)
One serial, async, and sync (T1/E1)
Synchronous serial interfaces on serial WAN interface cards
Asynchronous serial interfaces on serial WAN interface cards
ISDN WAN interface cards
One auxiliary (AUX) port
One console port
One internal expansion slot
Power QUICC at 48 MHz RISC
Processor 4MB DRAM 4MB Flash memory
Processor: Minimum 48 MHz RISC
Including multiprotocol routing
CSU:
SYNC : 2400/4800/9600/19200/38400/56000/64000 bps
ASYNC : 2400/4800/9600/19200/38400/56000/57600/64000bps
EIA-232D(SYNC/ASYNC) : 2400~64000bps
ITU-T V.35(SYNC/ASYNC) : 2400~64000bps
One Ethernet Port
DDS(Digital Data Service)
Self Test & Test (LLB, DLB, RDLB, TPG)
Remote DSU Control
HUB:
Conforms to IEEE802.3, 802.3u and 802.3x Ethernet Standards
8 ports auto-negotiation 10/100Mbps Ethernet RJ-45 ports
Automatic MDI/MDIX crossover for each 10Base-T/100Base-TX port
Backpressure for Half-duplex mode and Flow control for Fullduplex mode
Store-and-forward switching architecture 1K entry
MAC address table and automatic address learning
Performs non-blocking full wire speed
LED-indicator for Power, LK/ACT
ACCESSORIES:
LAN Card
UTP Line Tester
UTP Cable
RJ-45 Jack
RJ-45 Tool
Switch LAN
Mikrotik
Kabel RJ45
LAN Adapter
Includes manual book and experiment module
