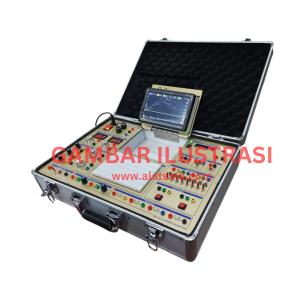

Multi Function Measuring Instrument System

Konsentrasi Keahlian :

Teknik Instalasi Tenaga Listrik

Teknik Jaringan Tenaga Listrik

Teknik Mekatronika

Teknik Otomasi Industri

Teknik Pemanasan, Tata Udara dan Pendinginan (Heating, Ventilation, and Air Conditioning)

Teknik Pembangkit Tenaga Listrik

Deskripsi :

Digunakan untuk menyediakan instrumen-instrumen alat ukur komponen elektrik dan elektronik.
2 channel DC power supply: approx. 2 x 0 - 25V, 1A
Signal pulse generator: 1CH, 1Hz - 1MHz
Frequency counter range: 0 -10MHz
Digital multimeter: DC & AC current, DC & AC voltage,
Resistance
Pulse generator range: 1Hz - 1MHz
Analog meter: voltage & current measurement
Programmable resistor: 1-15 K.Ohm, 10-150 K.Ohm, 100 K.Ohm - 1 M.Ohm, resolution 1 Ohm
Programmable capasitor: 100pF0.1mF, 1000pF-1mF
Logic switch: 8 Lock SW (bounceless output)
Variable reistor: 10 Ohm-10K.Ohm, 10 Ohm-100 K.Ohm
Control switch: slide, toggle,push
Hi/Lo pulse: 200ms cycle
Push switch: NO/NC push switch
Oscilloscope: 7" LCD with touchscreen
Experiment Module and User Manual
