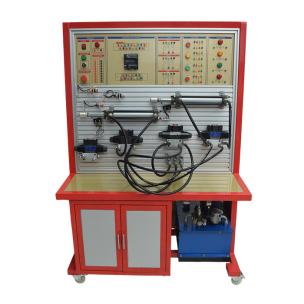

Advanced Electro Hydraulic Training System
Digunakan untuk pembelajaran mengenai suatu sistem elektro hidrolik, lengkap beserta komponen-komponen elektro hidrolik,
serta pengaplikasiannya dalam sistem otomasi industri.
Hydraulic power unit:
Work power: AC:380V
Frequency:50Hz
Safety rate-limiting range:1000-1500 r/min
Power:1.1KW
Flow:4.5L/min
Oil box volume: 35Ltr
Gear pump system: motor pump using open shelf installation, structure compact, low noise, easy to maintenance
Part list:
Training workbench, Hydraulic station, Double-acting hydraulic cylinder, One-way throttlevalve, Throttle valve,
Pressurerelief valve (directly actuated), 4/3 Way solenoid valve (M), 4/3-WAY solenoid valve(O), 4/3 Way solenoid valves（Y),
4/3-WAY solenoid valve （H）, 4/2 Way solenoid valve, 4/2 Way manual shuttle valves, Speed regulator valve, Pilot relief valve,
Piloted sequence valve, Pilot type pressure reducing valve, Piloted operated check valve, Check valve, Pressure relay, T connector,
Five way connector, Hydraulic distributor, Glycerin pressure gauge, Hose 0.6m, Hose 1m, Hose 1.5m, DC power module, Relay module,
Button switch module, Power supply for hydraulic pump use, Photoelectric sensor, Capacity sensor, Inductive sensor,
Micro switch module (left), Micro switch module (right), PLC module, PLC programming software, Download cable, Test line,
Toolkit, Manual book
