DETAIL PRODUK

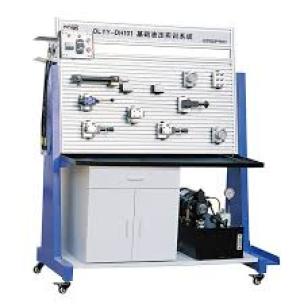

Basic Electro Hydraulic Training System

Kompetensi Keahlian :

Deskripsi :

Digunakan sebagai perangkat
untuk pelatihan elektro hidrolik
dasar.
Hydraulic power unit:
Work power : AC 38OV
Frequencg : 5OHz
Safetg rate-limiting range : 1OOO-15OO r/min
Flow : approx. 4.5L/min
Oil box volume : approx. 35Ltr
Gear pump sgstem: motor pump
using open shelf installation,
structure compact,low noise, easy
to maintenance.
Part li.st:
Training table, Hg draulic station,
Double acting hydraulic cylinder,
throttle valve, One-way throttle
value, Pressure relief value (directly
actuated), 4/ 3 Way solenoid valve
(M) ,4/ 3 Wag solenoid value (O),
4/ 3 Way solenoid ualue (Y), 4/ 3
Way solenoid value (H), 4/ 2 Way
solenoid valve, 4/ 2 Way manual
, shuttle valves, Speed regulator
valve , Pilot Relief Valve, Pressure
relief valve (pilot actuated) Pilot
pressure reducing valve, Hydraulic
control one-way valve, One-way
valve, Pressure relay, T connector,
Five way connector, hydraulic
distributor, Glycerin pressure
gauge, Hose 0.6m, Hose 7m, Hose

1.5m, DC power module, Relay
module, Button switch module,
power unit for hydraulic pump,
Photoelectric sensor, Capacitive
sensor, Inductive sensor, Micro
switch module Aeft), Micro switch
module (right), Test line, Toolkit,
Hydraulic Simulation Software.
Manual book, Experiments module

Tag:

#DAK Alat SMK 2023
