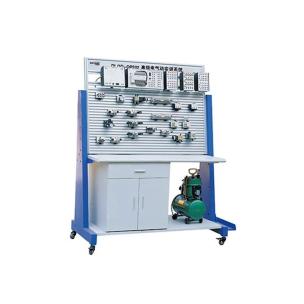

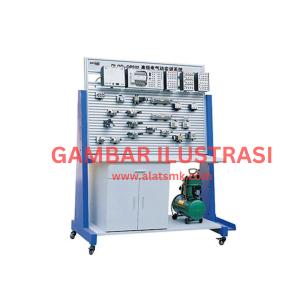

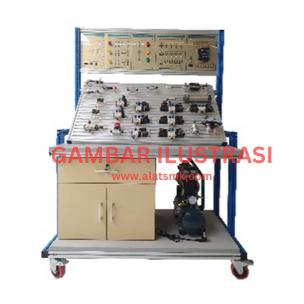

Advanced Electro Pneumatic Training System Without PLC
Pengetahuan tentang dasar-dasar fisik elektropneumatik serta fungsi dan penerapan komponen elektropneumatik
Perangkat ini memungkinkan konstruksi sirkuit kontrol elektropneumatik sederhana
Seperangkat peralatan dapat digunakan untuk membangun sirkuit kombinasi luas dengan penghubung logika
sinyal input dan output, serta sistem kontrol yang di program.
Minimal Konfigurasi
1 Unit Signal input, electrical
2 UnitRelay, three-fold
1 Unit Limit switch, electrical, left-actuated
1 Unit Limit switch, electrical, right-actuated
1 Unit Proximity sensor, optical, M12
1 Unit Proximity sensor, electronic, with cylinder mounting
1 Unit 2 x 3/2-way solenoid valve with LED, normally closed
1 Unit 5/2-way solenoid valve with LED
2 Unit 5/2-way double solenoid valve with LED
1 Unit Pressure sensor with display
4 Unit One-way flow control valve
1 Unit Single-acting cylinder
2 Unit Double-acting cylinder
1 Unit Start-up valve with filter control valve
1 Unit Manifold
1 Unit Plastic tubing
1 Unit Signal input, electrical
2 UnitRelay, three-fold
1 Unit Time relay, two-fold
1 Unit Preset counter, electronic
1 Unit Emergency stop pushbutton, electrical
1 Unit Proximity sensor, inductive, M12
1 Unit Proximity sensor, capacitive, M12
1 Unit Valve terminal with 4 valve slices (MMJJ)
2 Unit Non-return valve, delockable
-Buku Petunjuk Penggunaan
