DETAIL PRODUK

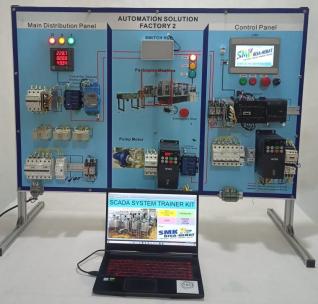

HMI/SCADA System
Konsentrasi Keahlian :
Deskripsi :
PLC dengan kecepatan prosesor sampai 400MHz
Sistem I/O fleksibilitas yang lengkap. Bahasa pemrograman berdasarkan standard IEC 61131 -3
Dapat digunakan untuk mengontrol loop terbuka dan tertutup.
Konfigurasi minimal :
32-bit MIPS processor, 4O0 MHz
Data memory 32 MB flash/ 32 MB RAM
20 MB flash/8 MB RAM user memory
32 KB non-volatile memory
Communication network
Ethernet 10/ lOO Base-T
Integrated web server
Master CAN open field bus
Diagnostic handheld for CPX terminal can be connected
All FEDs can be connected via Ethernet
Visualisation OPC server for connection to any SCADA packages
Depth : Height: Length = 47 : 147 : 187 mm
Real-time clock
Recipe memory: 32 lcB
Pages: 1.000
Tags: 10.000
Number of colours: 64k
Display: TFT color
Display size: 7"
Display property: Touchscreen
Display resolution: WVGA, 800x480 pixel
Nominal operating voltage: 24V
Ethernet interface: RJ4510/ 100 MBd
1 Unit Pump, 2 Unit Tank round, 1 Unit Flow meter, 1 Unit I/O board for EduKit PA, 2 Unit Sensor capacitive,
1 Unit Sensor ultrasound, 1 Unit flow sensor, including transducer, 1 Unit Pressure sensor 0 - 400 mbar, 1 Unit 2/ 2-way solenoid valve
-Buku Petunjuk Penggunaan
Sistem I/O fleksibilitas yang lengkap. Bahasa pemrograman berdasarkan standard IEC 61131 -3
Dapat digunakan untuk mengontrol loop terbuka dan tertutup.
Konfigurasi minimal :
32-bit MIPS processor, 4O0 MHz
Data memory 32 MB flash/ 32 MB RAM
20 MB flash/8 MB RAM user memory
32 KB non-volatile memory
Communication network
Ethernet 10/ lOO Base-T
Integrated web server
Master CAN open field bus
Diagnostic handheld for CPX terminal can be connected
All FEDs can be connected via Ethernet
Visualisation OPC server for connection to any SCADA packages
Depth : Height: Length = 47 : 147 : 187 mm
Real-time clock
Recipe memory: 32 lcB
Pages: 1.000
Tags: 10.000
Number of colours: 64k
Display: TFT color
Display size: 7"
Display property: Touchscreen
Display resolution: WVGA, 800x480 pixel
Nominal operating voltage: 24V
Ethernet interface: RJ4510/ 100 MBd
1 Unit Pump, 2 Unit Tank round, 1 Unit Flow meter, 1 Unit I/O board for EduKit PA, 2 Unit Sensor capacitive,
1 Unit Sensor ultrasound, 1 Unit flow sensor, including transducer, 1 Unit Pressure sensor 0 - 400 mbar, 1 Unit 2/ 2-way solenoid valve
-Buku Petunjuk Penggunaan
